O Sensitivity Mapping Baltic Sea 2001 - 2003: Partners, Objectives Concepts Data Retrieval Evaluation Model
Sensitivity Mapping Baltic Sea: Examination, Collection and Preparation of Data

To be able to build on existing data, the project started with a full literature research at authorities, institutes and companies as part of the examination of data on benthic invertebrates, macroalgae, aquatic and coastal birds, protected spawning grounds of fish, as well as sea mammals in the German part of the Baltic Sea. All of these topics were relevant to the later evaluation.

In the subsequent step, data deficiencies were determined which concerned especially the topics of benthic invertebrates and macroalgae.
To compensate for missing data on macroalgae and benthic invertebrates, data were collected offshore. Collected data from the shallow water areas were included in the mapping of types of offshore biotopes which mainly involved evaluations of vertical aerial photographs of the German Baltic coastal zone.


unit to get samples
Another part of the data preparation was defining shore types. The data basis for the shore types onshore were typical cross-sections in the software VPS that were classified in view of efficient response measures.
For a mapping of the different sensitivities, the existing shore types were grouped and, especially off-shore, supplemented in terms of ecological significance and the sensitivity deriving from it.
Subsequently, a ranking of on-shore and off-shore shore types was defined in respect of their sensitivity to oil pollution.
mussels on sea ground sea grass

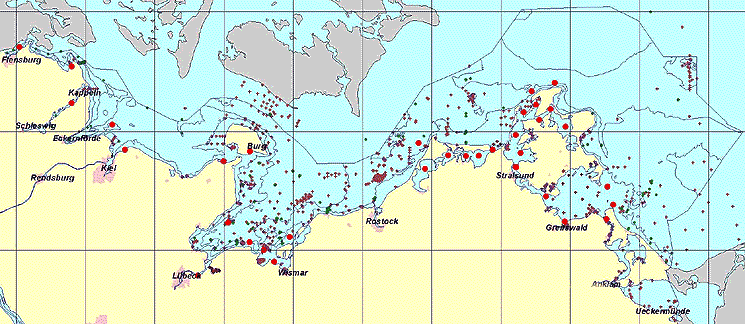

The picture shows sampling points of benthic invertebrates used since 1990.
Areas with data deficiencies are marked with red dots.

Beprobungspunkte
